Project 01:- Static Analysis – Car frame structure
Client Name:- Mr. David
Client Requirements:
The client needed a structural analysis to verify the safety of a frame under a 450 kg load. They provided detailed drawings of the frame and requested a precise analysis to ensure the structure could handle the load effectively. The main objectives were to evaluate the frame’s displacement and stress distribution and confirm whether the design met safety standards. They also required the analysis to be documented and delivered with clear visuals and a comprehensive report.
Our Solution:
To meet the client’s requirements, we:
- 3D Modeled the Frame: Created a precise 3D CAD model of the frame using the provided drawings to simulate real-world conditions accurately.
- Applied the Load: Performed a structural analysis by applying a 450 kg load to the frame, simulating its behavior under stress.

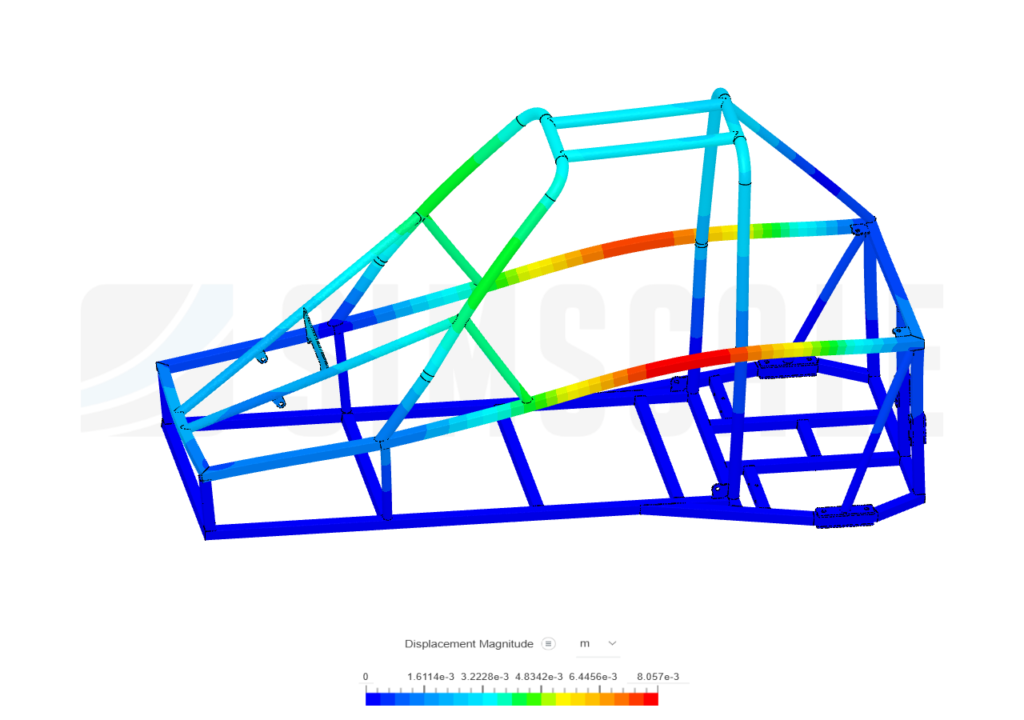

- Analyzed the Results: Evaluated the frame’s structural behavior, calculating the displacement and stress distribution. The analysis confirmed that the maximum displacement was 8mm, which is within safe limits.
- Delivered a Comprehensive Report: Provided the client with detailed screenshots of the analysis, along with a report summarizing the findings, ensuring the results were easy to understand and aligned with their expectations.
This approach ensured the client could confidently proceed with their project, knowing the frame met safety standards.
