Project 01:- Industrial Platform

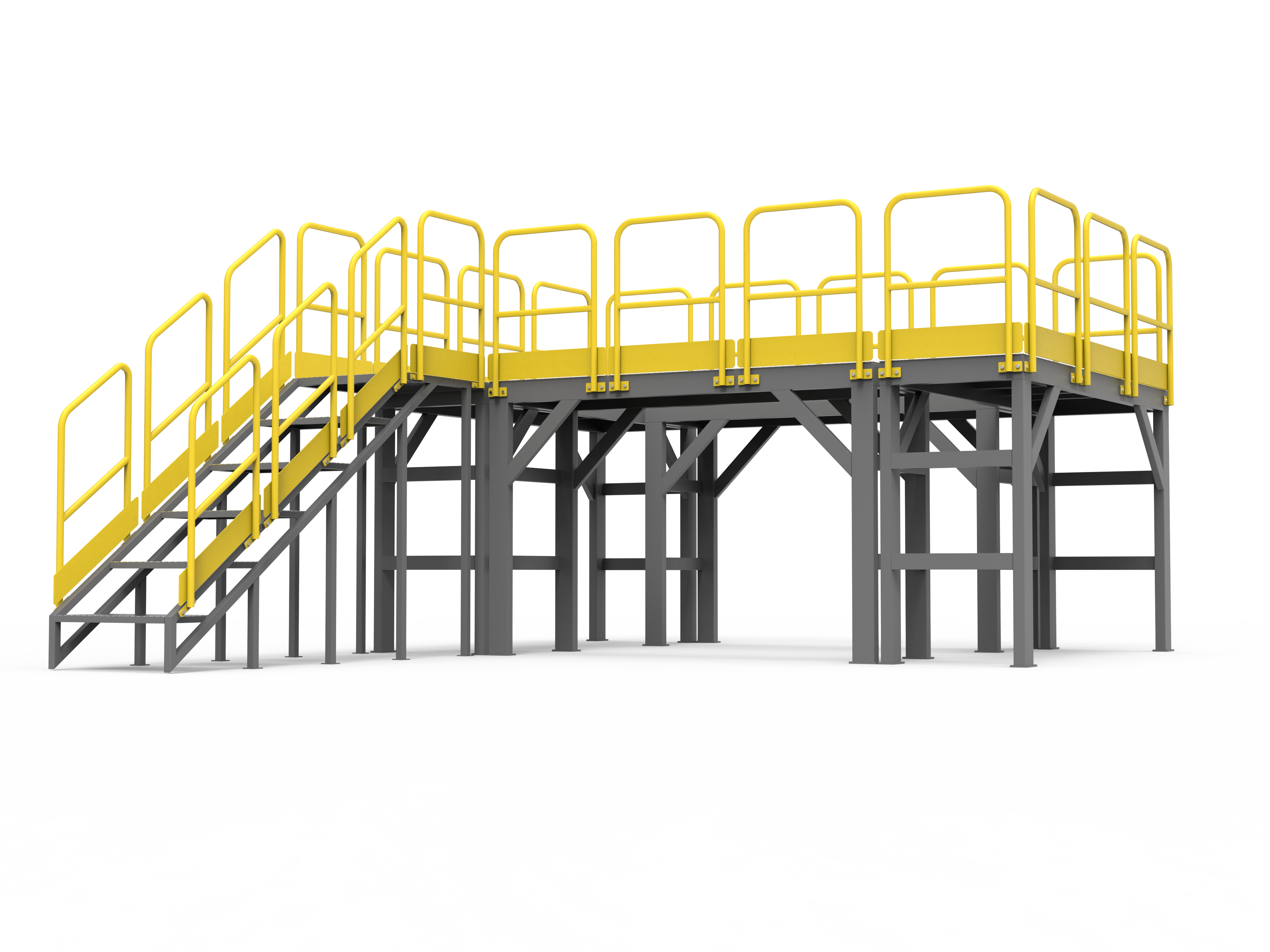

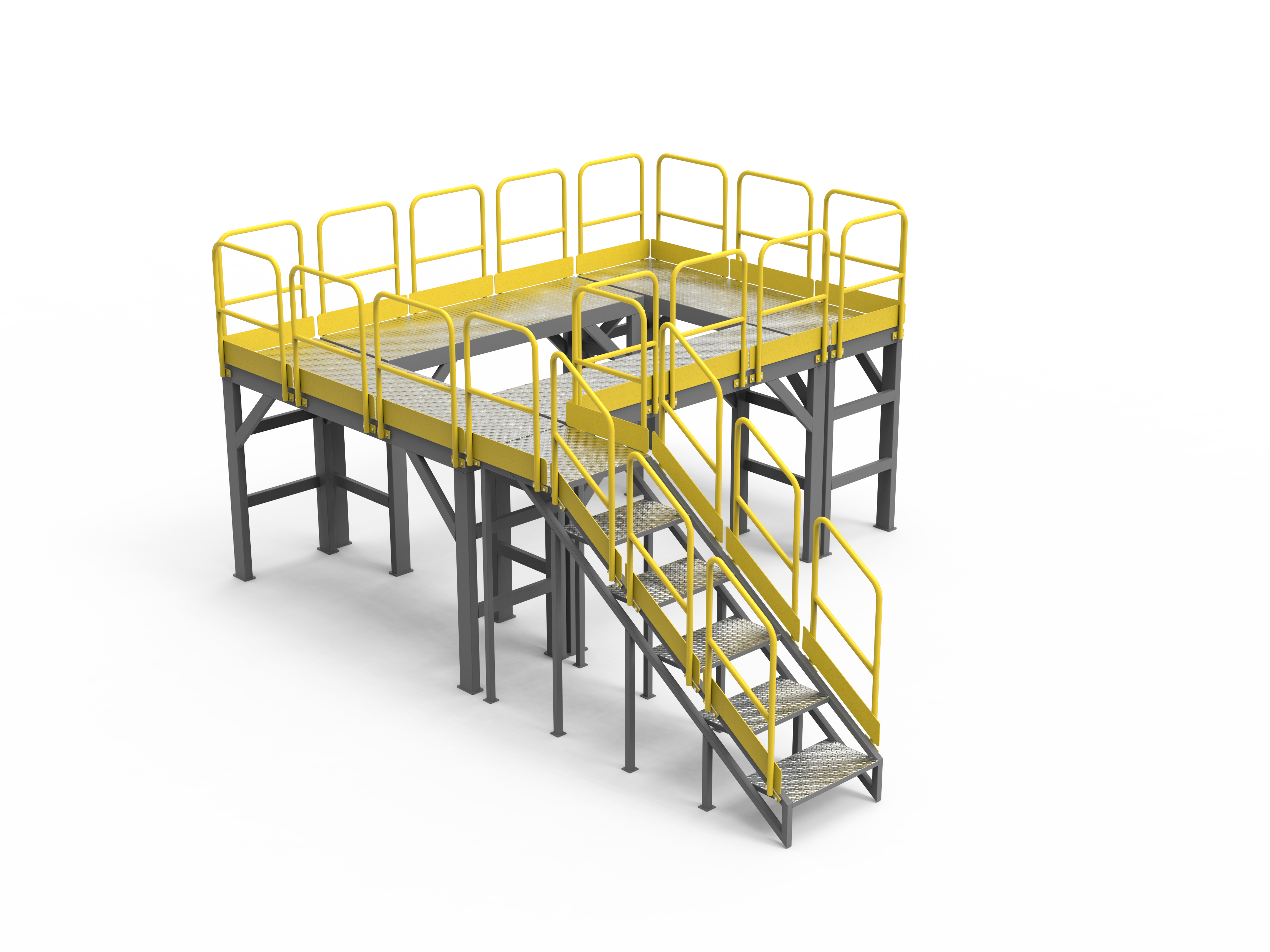

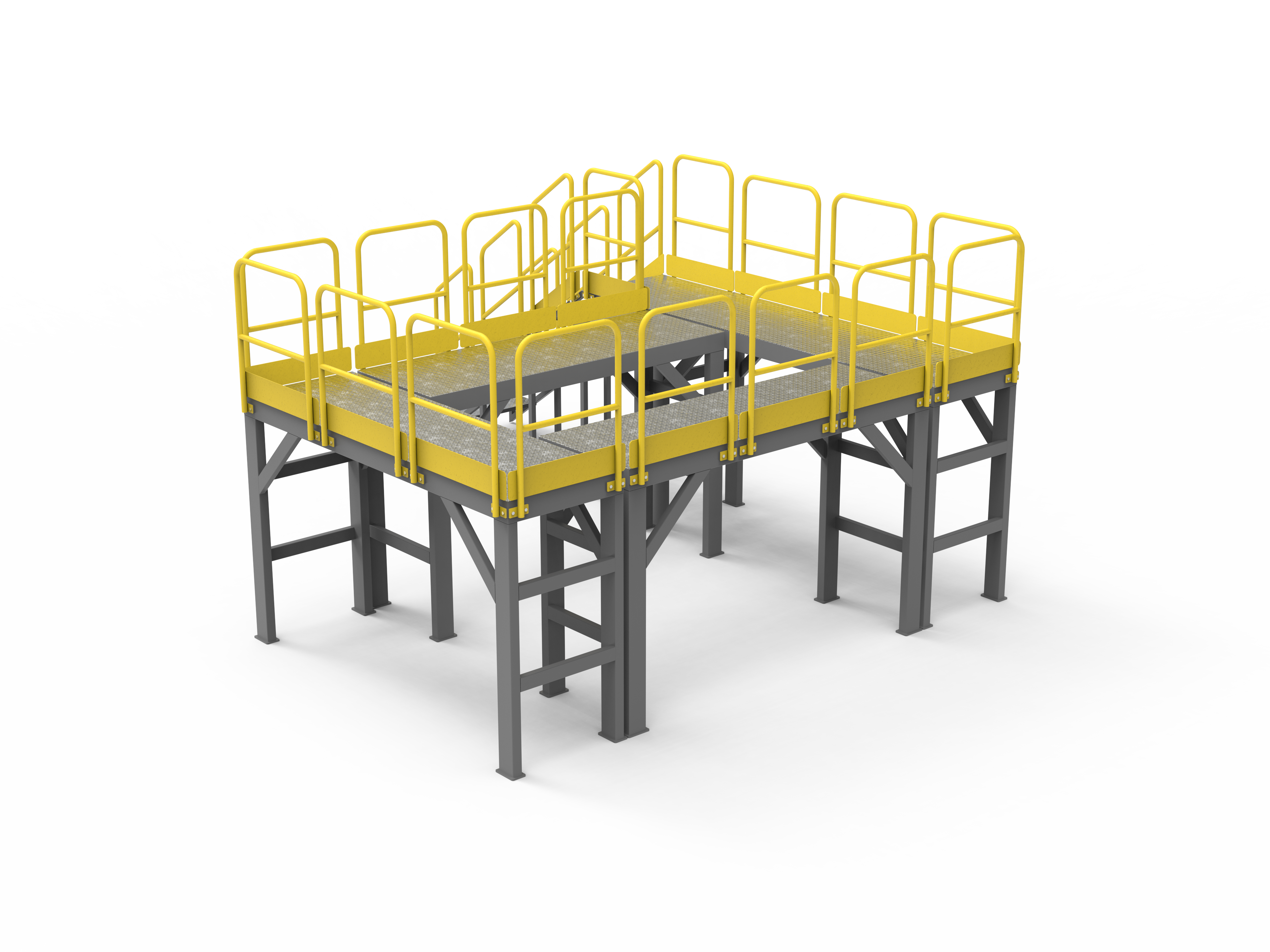

At Arcyantra Solutions, we successfully designed and delivered a segmented industrial platform that adheres to ISO and OSHA safety standards. This platform was tailored for industrial environments to facilitate easy access for maintenance and inspections around machinery.
Key Features
- Dimensions:
- Spanning 2370mm x 1000mm and standing at a height of 1500mm.
- Material of Construction (MOC):
- Made entirely of Mild Steel (MS) for durability and reliability.
- Load Capacity:
- Designed to safely support up to 4 individuals (70 kg each).
- Load tested for 4120N, ensuring maximum safety and performance.
- Accessibility:
- Equipped with a sturdy ladder for convenient access.
- Safety and Compliance:
- Fully compliant with international safety standards (ISO and OSHA).
Design Highlights
- Engineered to provide a secure and stable platform for workers to inspect and maintain machinery from all sides.
- Optimized structure with strategically selected sections for enhanced load-bearing capacity.
- The platform’s layout ensures worker safety and comfort while navigating and performing tasks.
Simulation and Analysis
- Structural analysis validated the platform’s integrity under load conditions, ensuring it meets stringent industrial safety requirements.
Deliverables

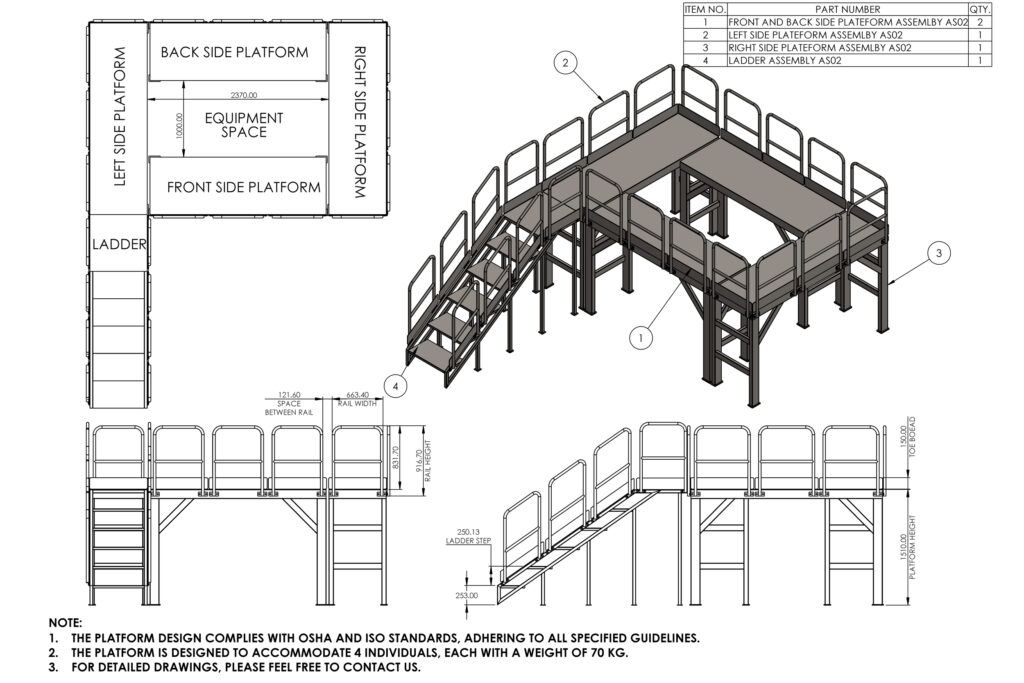

- Detailed 3D models and technical drawings for manufacturing.
- Flat patterns and assembly instructions for seamless production and setup.
If you already have the concept and design, you can request our free expert consultation and we’ll get back to you within one week. If you need tech advice, you can book a premium one-hour consultation.
